PN:P100005312
EAN:7640121223587
Product Details
model
compound

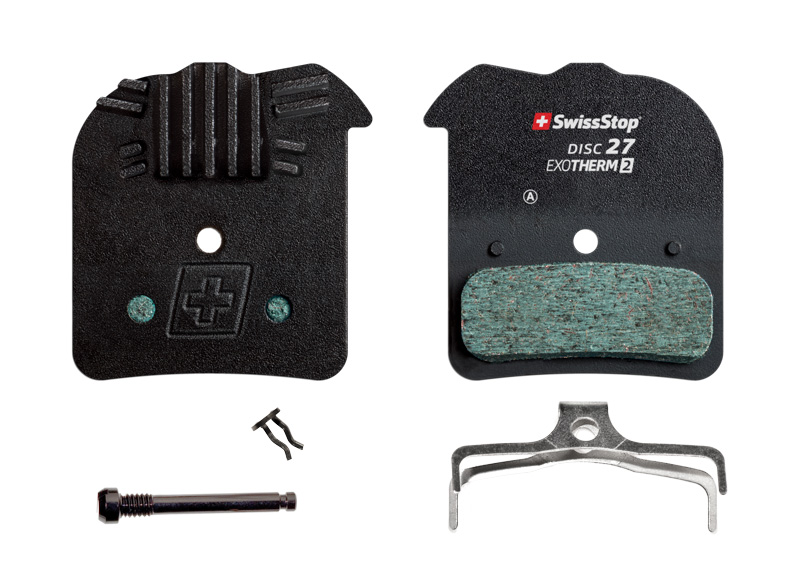

Disc 27
EXOTherm2
Fits
Shimano
Pad Types
- N03A
- D02S
- H03A
- H03C
- D03S
- N04C
Brake Calipers
- XTR BR-M9120
- XT BR-M8120,BR-M8020
- SLX BR-M7120
- DEORE BR-M6120,BR-MT420
- SAINT BR-M820
- ZEE BR-M640
- BR-MT520
Characteristics
Maximum pad life. Minimum brake fade.
EXOTherm2 combines a very durable, easy to modulate compound with a cooling fin equipped back plate to provide consistent, powerful braking in all conditions.
- pad wear rate is much lower than competitors
- smooth, consistent brake performance
- lightweight at 22 grams per pair (Disc 28 EXOTherm2)
performance
0 (worst) - 10 (best)
Initial Bite: 7
Modulation: 9
Longevity: 10
Heat Tolerance: 10
Noise Dry: 9
Noise Wet: 7
Find Your Pads
A life-size drawing of Disc 27 is available for download.
You can match the shape and dimensions of your pads to help determine if this model is the correct fit for your brakes.
2 MB PDF file.
A5 size paper printable on A4 and US letter.
Print at 100% size. Do not scale the print out.
instructions
info
SwissStop recommends having Disc Brake Pads changed by a professional mechanic at your local authorized SwissStop retailer.
When changing disc pads please clean rotor of any particles and check function of the whole brake system.
Attention: pads must be bedded in to achieve optimal performance
Step 1. On a gradual downhill slope, drag each brake for 20-30 seconds, alternating between front and rear. Repeat 2-3 times.
Step 2. On a steeper slope, engage and drag the brakes for 10-15 seconds then increase lever pressure until the bike slows almost to a complete stop. Repeat 2-3 times.
Pro Tip: The front pads will have been heated more than the rear. To achieve optimal performance, exchange the front and rear pads then repeat Step 2.
CAUTION before replacing or exchanging brake pads it is essential to let all parts cool.
